Western Medical Oxygen Flow Control Regulator, MR-870-15FG, Single Stage Preset, 2-15 LPM
$372.00

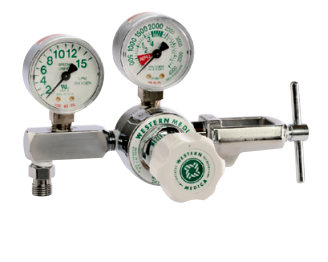

The Western MR-870-15FG Compact Oxygen (O2) Single Stage Flow Gauge Regulator has a 2-15 LPM capacity. Max inlet pressure is 3000 PSI. Regulator has an all brass body and high pressure chamber. Convinient swivel yoke connection.
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
- Description
- Additional information
- Specifications
Description
Oxygen Compact Style Single Stage flow gauge regulator 2-15 LPM
Body Material – Chrome Plated Brass
Approx Dimensions – 3.31″W x 4.05″H x 7.38″D (refer to spec sheet)
Gauge Diameter – 1.5 inch
Max Inlet Pressure – 3000 psi
2″ Inlet Pressure Gauge, Range – 0-4000 psig
2″ Outlet Pressure Gauge, Range: 0-119 psig
Durable neoprene diaphragm
Internal reseating relief valve protects against over-pressurization
Sintered filter for additional safety and to extend regulator life
Single-stage with CGA-870 swivel yoke to add convenience for orientation
Additional information
| Brand | |
|---|---|
| Prod Type | |
| Gas Type | |
| Inlet Connection | |
| Outlet Connection |
